Pivoting Data in SQL

Starting here? This lesson is part of a full-length tutorial in using SQL for Data Analysis. Check out the beginning.

In this lesson we'll cover:

• Pivoting rows to columns

• Pivoting columns to rows

• What's next?

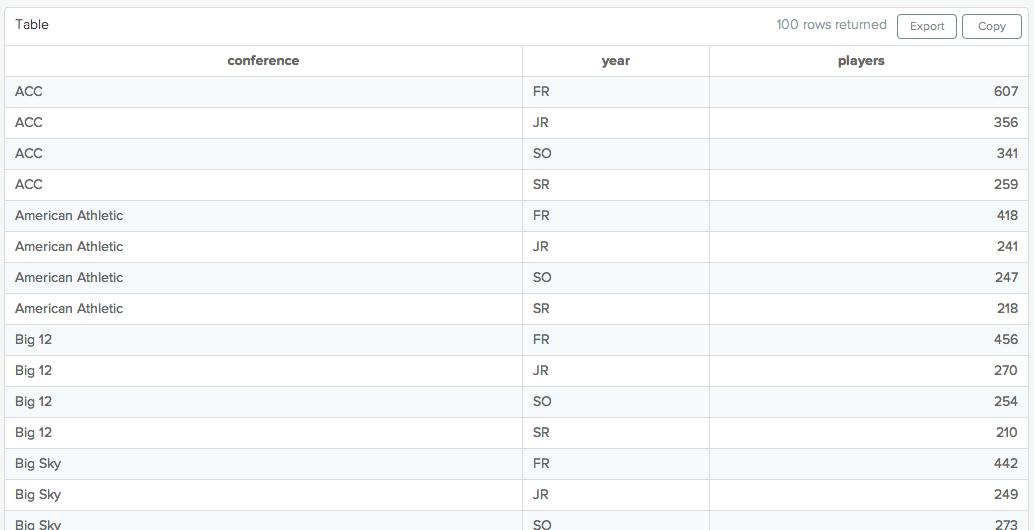

This lesson will teach you how to take data that is formatted for analysis and pivot it for presentation or charting. We'll take a dataset that looks like this:

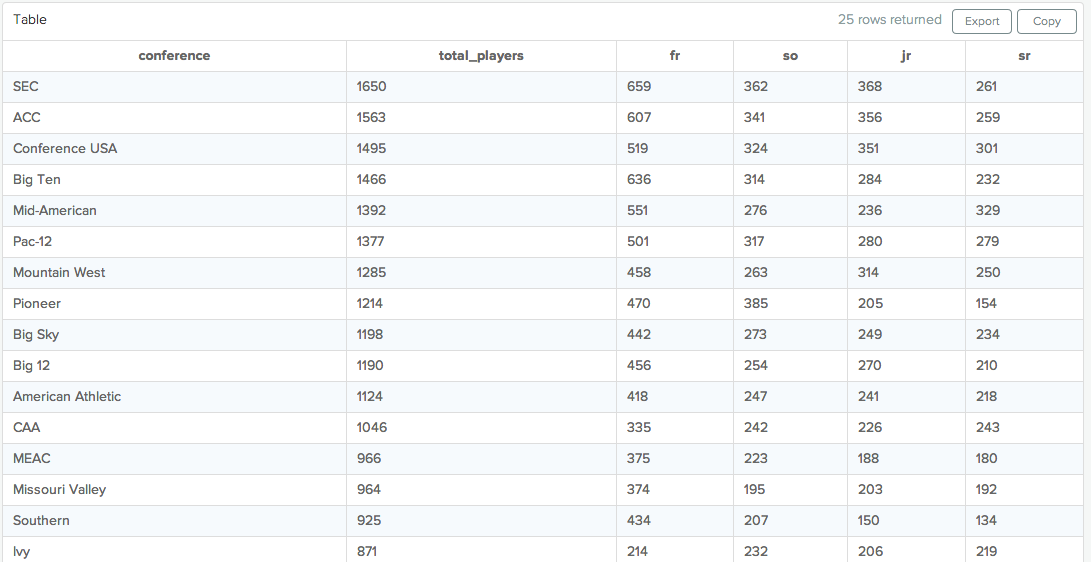

And make it look like this:

For this example, we'll use the same dataset of College Football players used in the CASE lesson.

Let's start by aggregating the data to show the number of players of each year in each conference, similar to the first example in the inner join lesson:

SELECT teams.conference AS conference,
       players.year,
       COUNT(1) AS players
  FROM benn.college_football_players players
  JOIN benn.college_football_teams teams
    ON teams.school_name = players.school_name
 GROUP BY 1,2
 ORDER BY 1,2

In order to transform the data, we'll need to put the above query into a subquery. It can be helpful to create the subquery and select all columns from it before starting to make transformations. Re-running the query at incremental steps like this makes it easier to debug if your query doesn't run. Note that you can eliminate the ORDER BY clause from the subquery since we'll reorder the results in the outer query.

SELECT *
  FROM (
        SELECT teams.conference AS conference,
               players.year,
               COUNT(1) AS players
          FROM benn.college_football_players players
          JOIN benn.college_football_teams teams
            ON teams.school_name = players.school_name
         GROUP BY 1,2
       ) sub

Assuming that works as planned (results should look exactly the same as the first query), it's time to break the results out into different columns for various years. Each item in the SELECT statement creates a column, so you'll have to create a separate column for each year:

SELECT conference,
       SUM(CASE WHEN year = 'FR' THEN players ELSE NULL END) AS fr,
       SUM(CASE WHEN year = 'SO' THEN players ELSE NULL END) AS so,
       SUM(CASE WHEN year = 'JR' THEN players ELSE NULL END) AS jr,
       SUM(CASE WHEN year = 'SR' THEN players ELSE NULL END) AS sr
  FROM (
        SELECT teams.conference AS conference,
               players.year,
               COUNT(1) AS players
          FROM benn.college_football_players players
          JOIN benn.college_football_teams teams
            ON teams.school_name = players.school_name
         GROUP BY 1,2
       ) sub
 GROUP BY 1
 ORDER BY 1

Technically, you've now accomplished the goal of this tutorial. But this could still be made a little better. You'll notice that the above query produces a list that is ordered alphabetically by Conference. It might make more sense to add a "total players" column and order by that (largest to smallest):

SELECT conference,
       SUM(players) AS total_players,
       SUM(CASE WHEN year = 'FR' THEN players ELSE NULL END) AS fr,
       SUM(CASE WHEN year = 'SO' THEN players ELSE NULL END) AS so,
       SUM(CASE WHEN year = 'JR' THEN players ELSE NULL END) AS jr,
       SUM(CASE WHEN year = 'SR' THEN players ELSE NULL END) AS sr
  FROM (
        SELECT teams.conference AS conference,
               players.year,
               COUNT(1) AS players
          FROM benn.college_football_players players
          JOIN benn.college_football_teams teams
            ON teams.school_name = players.school_name
         GROUP BY 1,2
       ) sub
 GROUP BY 1
 ORDER BY 2 DESC

And you're done!

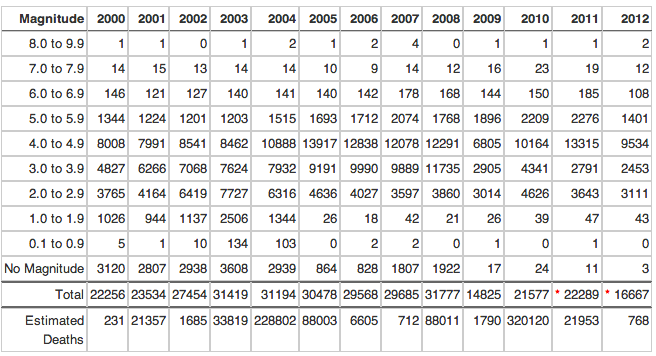

A lot of data you'll find out there on the internet is formatted for consumption, not analysis. Take, for example, this table showing the number of earthquakes worldwide from 2000-2012:

In this format it's challenging to answer questions like "what's the average magnitude of an earthquake?" It would be much easier if the data were displayed in 3 columns: "magnitude", "year", and "number of earthquakes." Here's how to transform the data into that form:

First, check out this data in Mode:

SELECT *
  FROM tutorial.worldwide_earthquakes

Note: column names begin with 'year_' because Mode requires column names to begin with letters.

The first thing to do here is to create a table that lists all of the columns from the original table as rows in a new table. Unless you have a ton of columns to transform, the easiest way is often just to list them out in a subquery:

SELECT year
FROM (
  SELECT 2000 AS year
  UNION ALL SELECT 2001
  UNION ALL SELECT 2002
  UNION ALL SELECT 2003
  UNION ALL SELECT 2004
  UNION ALL SELECT 2005
  UNION ALL SELECT 2006
  UNION ALL SELECT 2007
  UNION ALL SELECT 2008
  UNION ALL SELECT 2009
  UNION ALL SELECT 2010
  UNION ALL SELECT 2011
  UNION ALL SELECT 2012
) AS v;

Once you've got this, you can cross join it with the worldwide_earthquakes table to create an expanded view:

SELECT years.*,
       earthquakes.magnitude,
       CASE year
         WHEN 2000 THEN year_2000
         WHEN 2001 THEN year_2001
         WHEN 2002 THEN year_2002
         WHEN 2003 THEN year_2003
         WHEN 2004 THEN year_2004
         WHEN 2005 THEN year_2005
         WHEN 2006 THEN year_2006
         WHEN 2007 THEN year_2007
         WHEN 2008 THEN year_2008
         WHEN 2009 THEN year_2009
         WHEN 2010 THEN year_2010
         WHEN 2011 THEN year_2011
         WHEN 2012 THEN year_2012
         ELSE NULL
       END AS number_of_earthquakes
FROM tutorial_worldwide_earthquakes AS earthquakes
CROSS JOIN (
  SELECT year
  FROM (
    SELECT 2000 AS year
    UNION ALL SELECT 2001
    UNION ALL SELECT 2002
    UNION ALL SELECT 2003
    UNION ALL SELECT 2004
    UNION ALL SELECT 2005
    UNION ALL SELECT 2006
    UNION ALL SELECT 2007
    UNION ALL SELECT 2008
    UNION ALL SELECT 2009
    UNION ALL SELECT 2010
    UNION ALL SELECT 2011
    UNION ALL SELECT 2012
  ) AS v
) AS years;

Notice that each row in the worldwide_earthquakes is replicated 13 times. The last thing to do is to fix this using a CASE statement that pulls data from the correct column in the worldwide_earthquakes table given the value in the year column:

SELECT years.*,
       earthquakes.magnitude,
       CASE year
         WHEN 2000 THEN year_2000
         WHEN 2001 THEN year_2001
         WHEN 2002 THEN year_2002
         WHEN 2003 THEN year_2003
         WHEN 2004 THEN year_2004
         WHEN 2005 THEN year_2005
         WHEN 2006 THEN year_2006
         WHEN 2007 THEN year_2007
         WHEN 2008 THEN year_2008
         WHEN 2009 THEN year_2009
         WHEN 2010 THEN year_2010
         WHEN 2011 THEN year_2011
         WHEN 2012 THEN year_2012
         ELSE NULL
       END AS number_of_earthquakes
FROM tutorial_worldwide_earthquakes AS earthquakes
CROSS JOIN (
  SELECT year
  FROM (
    SELECT 2000 AS year
    UNION ALL SELECT 2001
    UNION ALL SELECT 2002
    UNION ALL SELECT 2003
    UNION ALL SELECT 2004
    UNION ALL SELECT 2005
    UNION ALL SELECT 2006
    UNION ALL SELECT 2007
    UNION ALL SELECT 2008
    UNION ALL SELECT 2009
    UNION ALL SELECT 2010
    UNION ALL SELECT 2011
    UNION ALL SELECT 2012
  ) AS v
) AS years;

Congrats on finishing the Advanced SQL Tutorial! Now that you've got a handle on SQL, the next step is to hone your analytical process.

We've built the SQL Analytics Training section for that very purpose. With fake datasets to mimic real-world situations, you can approach this section like on-the-job training. Check it out!
